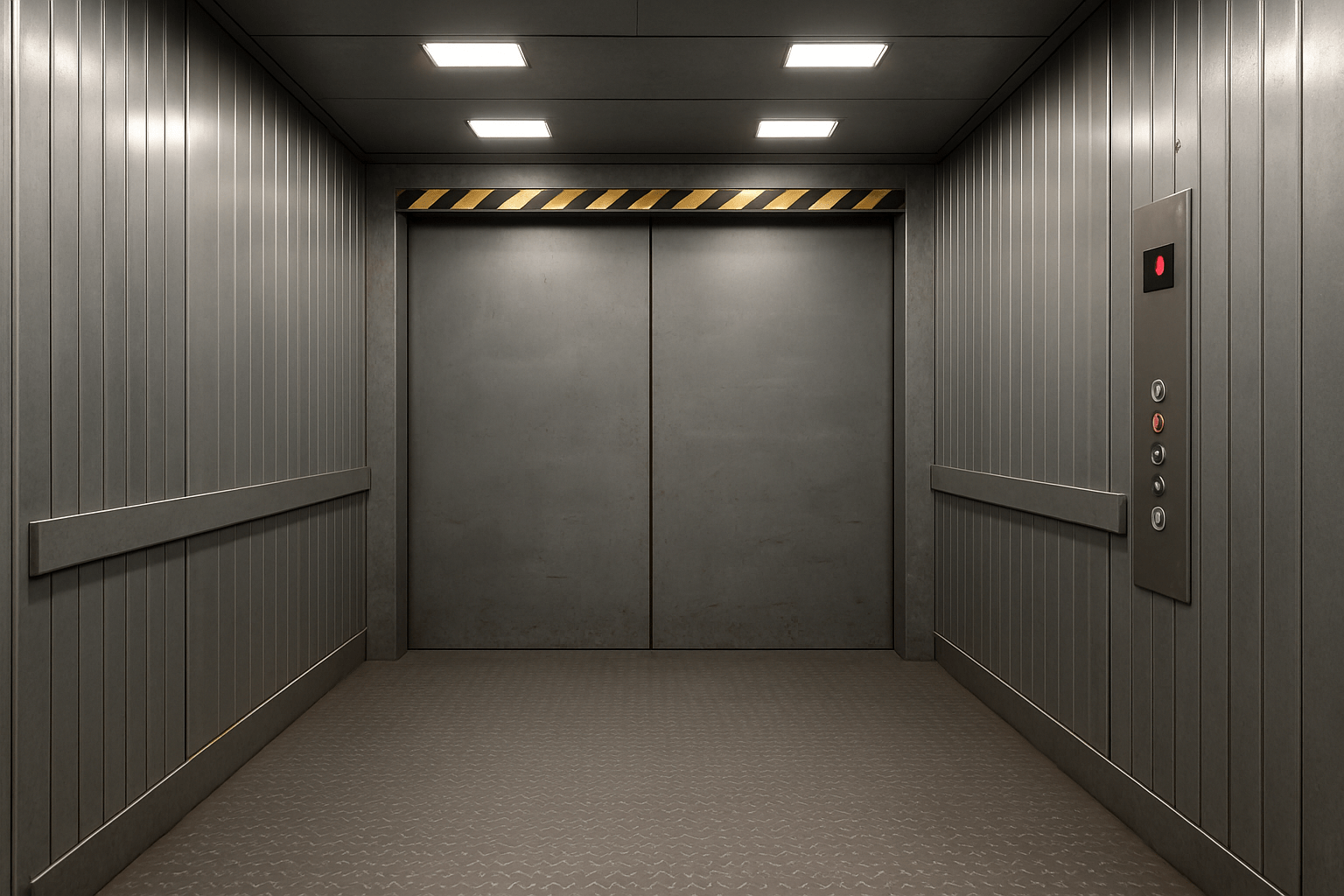

Hydraulic Lift

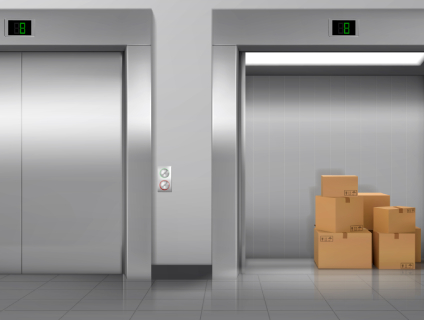

Hydraulic Lift Interior
Hydraulic Lift Design

Hydraulic Lift

Asia Elevators' hydraulic lifts are ideal for low to mid-rise buildings where space and cost efficiency are priorities. Using robust hydraulic technology, they provide reliable and smooth vertical transportation with minimal structural requirements.

Load Capacity

250 kg – 5000 kg

Speed Range

0.15 m/s to 0.63 m/s

Travel Height

Up to 20 meters

Drive System

Hydraulic power unit with submersible pump and oil-filled cylinder

Door Type

Manual / Automatic sliding doors with safety interlocks

Machine Room

MRL (Machine Room Less) available

Key Features & Finish Options

Power Unit
  • Submersible hydraulic pump with silent operation
  • Energy-saving variable speed control
Cabin Design
  • Stainless steel / powder-coated cabin
  • Custom size and interior finishes available
Control System
  • Microprocessor-based control panel
  • Soft-start and soft-stop for smooth operation
Safety Systems
  • Pressure relief valve, descent valve & flow control
  • Manual lowering in case of power failure

Safety & Compliance

Pressure Relief Valve

Prevents over-pressurization and ensures safe operation

Manual Emergency Lowering

Safe descent to ground level during power failure

Rupture Valve

Stops descent if hydraulic pipe bursts

Overload Protection

Prevents operation when load exceeds rated capacity

EN81 & ISO Compliant

Certified manufacturing and installation standards

Applications

Low-Rise
Buildings

Villas &
Bungalows

Factories &
Warehouses

Retail
Stores

Car
Showrooms
