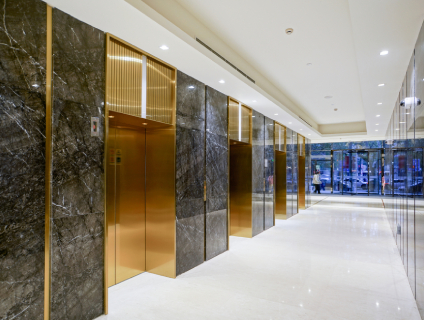

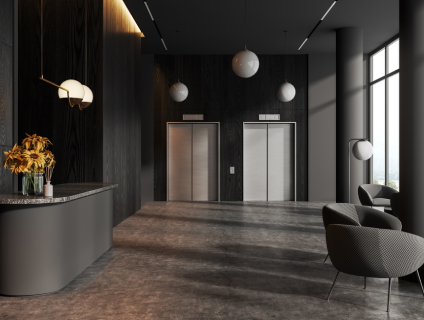

Asia Elevators' passenger elevators are engineered for comfort, speed, and safety across complexes, office towers, residential apartments, and hotels. These systems are built for high reliability, quiet operation, and customizable design to suit premium and functional interiors alike.
320 kg – 2000 kg (4 to 26 passengers)
0.50 m/s to 2.00 m/s (higher speeds available for high-rise variants)/p>
Up to 75 meters (customizable per project)
Gearless traction / VVVF-controlled system for smooth ride and energy efficiency
Automatic Centre-Opening / Customize / Telescopic / Glass doors (stainless or matte)
500mm to 3000mm (varies by cabin and use case)
Passengers
Offices
Hotels & Service
Apartments
Shopping
Malls
Residential
Towers
Educational
Institutions

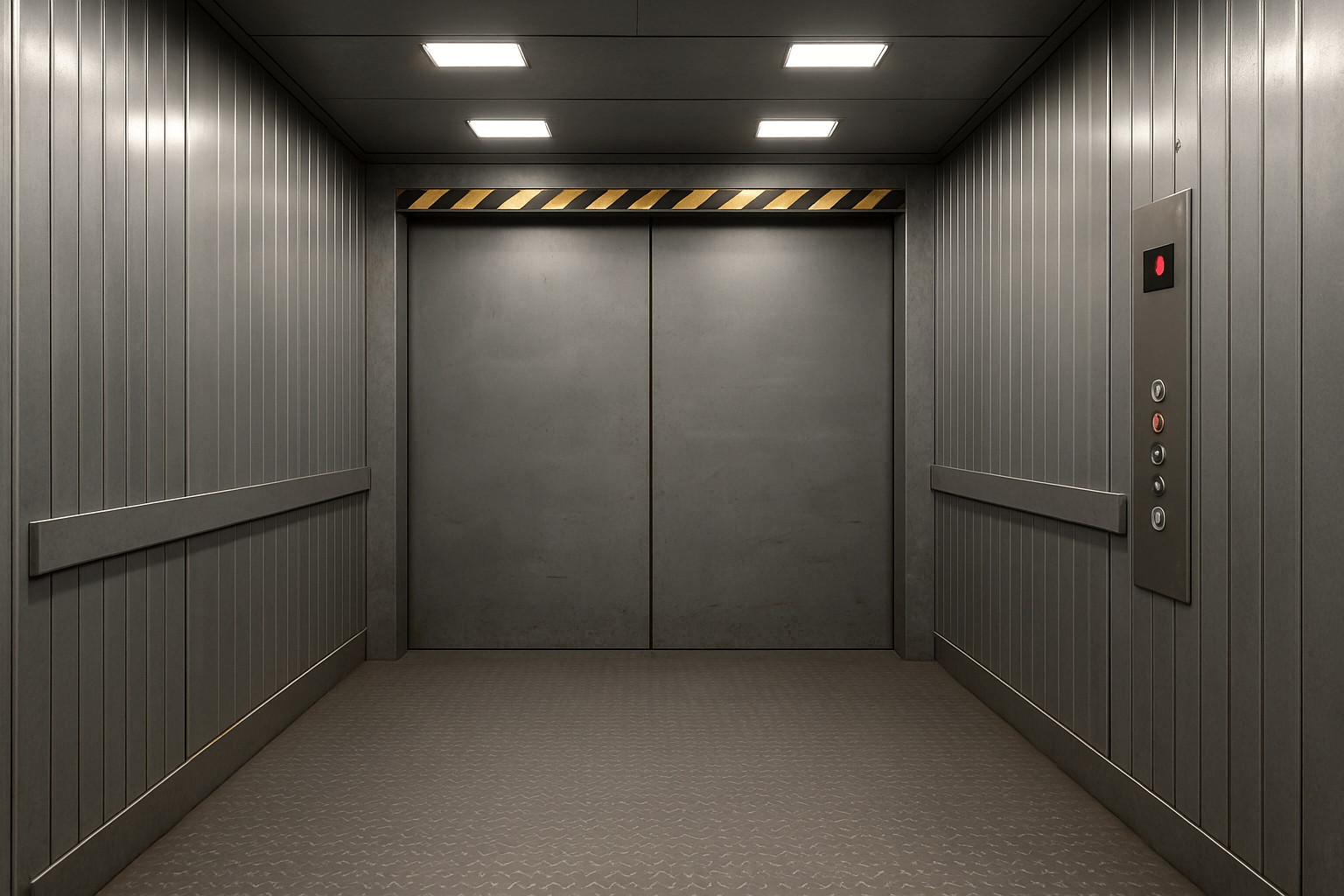

Asia Elevators’ freight elevators are engineered for heavy-duty applications where strength, stability, and safety are non-negotiable. Designed for industrial, logistics, warehouse, and settings, our systems move materials efficiently while withstanding high usage cycles and rugged environments.
500 kg – 5000 kg (custom-built up to 10,000 kg on request)
0.25 m/s to 1.0 m/s (based on load class and shaft conditions)
Tailored per requirement; standard range: 1000×1500 mm to 3000×4000 mm
High-torque geared or gearless traction motors; hydraulic option available for
low-rise and High Capacity
Vertical Bi-parting / Telescopic / Manual Collapsible / Power Operated Sliding
800mm to 3000mm depending on load capacity
Heavy-gauge mild steel or stainless steel walls with reinforced ribbing Dust- and impact-resistant construction for industrial durability
Checker plate MS flooring or reinforced steel base with shock absorption Optionally lined with non-slip rubber mat or wooden deck (for delicate cargo)
T-Section or solid steel guide rails to handle eccentric load movement Stabilized movement using heavy-duty counterweight and suspension gear
LED or digital arrow displays with overload signal and door status indicators
Manufacturing
Units
Warehouses &
Logistics Centers
Shopping Malls /
Hypermarkets
Cold Storage
Facilities
Construction /
Showrooms
Automobile Workshops /
Showrooms

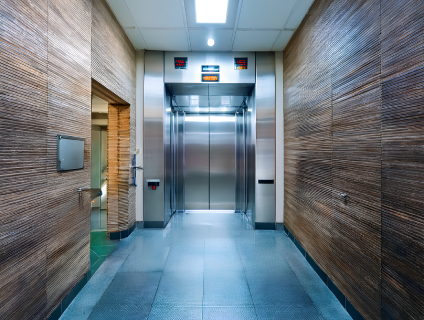

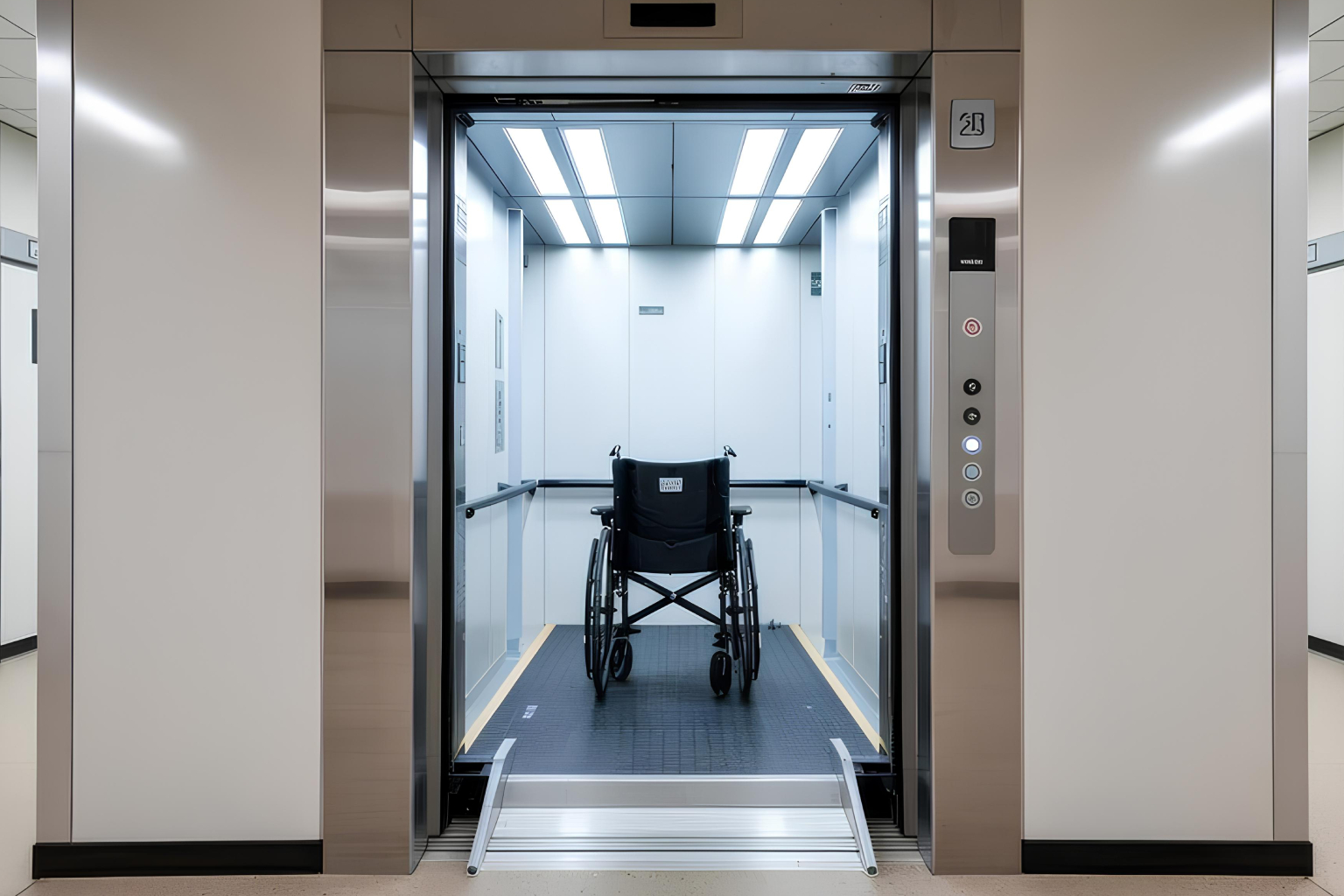

Asia Elevators’ hospital elevators are purpose-built for healthcare environments where precision, hygiene, and reliability are critical. Whether it’s moving patients on stretchers, transporting medical equipment, or facilitating emergency response, our elevators ensure safe, smooth, and silent operation in every scenario.
1000 kg – 2500 kg (suitable for 13 to 33 passengers / 1 stretcher + staff)
0.63 m/s to 1.6 m/s (depending on building height and urgency class)
Standard: 1100×2100 mm to 1600×2400 mm (custom dimensions available)
Gearless traction / VVVF drive for smooth, jerk-free operation
Centre-opening automatic stainless steel doors (fire-rated optional)
900mm to 2500mm clear opening for stretcher access
Antimicrobial stainless steel or coated panels resistant to scratches and contaminants Rounded corners for easy cleaning and safety
Sound-insulated panels and noise-reducing gearless drive for quiet patient movement
LED panel lighting or anti-glare medical-grade lights. Options for soft white, natural daylight tone or motion-activated lights
Seamless vinyl or anti-bacterial rubber flooring with non-slip texture. Optional marble or matte tile finish for premium healthcare interiors
Braille-enabled backlit buttons with emergency call, intercom, and staff override. Touch-free panels and voice-command system available
Multi-Specialty
Hospitals
Private Clinics &
Maternity Homes
Trauma & Emergency /
Care Centers
Diagnostic &
Imaging Labs
Medical Universities
and Hostels
Nursing Homes &
Assisted Living Spaces
Asia Elevators’ industrial and special-purpose elevators are engineered for unique, high-demand environments where conventional solutions fall short. Whether it’s a car lift for a luxury garage, a panoramic lift for a hotel atrium, or a dumbwaiter in a kitchen, we offer precision-built, project-specific vertical mobility systems.
300 kg – 10,000 kg (customized per use-case)
0.3 m/s to 1.5 m/s (project-dependent)
Fully customizable based on shaft space, vehicle size, or payload
Geared/Gearless Traction, Hydraulic (for low-rise), or Rack-and-Pinion (for external installs)
Collapsible, Vertical Sliding, Auto Center Opening, Glass Doors
Designed for showrooms, service garages, and residential parking towers Heavy-load cabin (up to 5000 kg), anti-roll flooring, extra-wide doors (up to 2500 mm) Multi-sensor entry protection and guided wheel tracks for vehicle alignment
Small-capacity lifts for vertical transport of food, documents, or medical supplies Compact design with steel trays, fire-rated doors, and interlocks for safety Load capacities: 100–300 kg | Door opening: Swing / Bi-parting vertical
Ideal for malls, corporate lobbies, and hotels Fully transparent cabin with laminated glass, stainless trims, and designer lighting Optional ambient lighting, circular shape, or wraparound glass Available in indoor or weather-proof outdoor variants
Custom systems for sloped travel (30–45° inclines) in hilly resorts or exterior towers Weather-resistant structure, IP-rated components, and hydraulic or rack-pinion drive Built to endure wind loads, dust, and rainfall
Automobile Showrooms &
Garages
Hotels & Malls
(Panoramic Lifts)
Research Labs &
Pharma Units
Hotels, Restaurants
(Dumbwaiters)
Builder Flats,
Duplexes (Villa Lifts)
Airports, Towers,
Landmark Buildings
